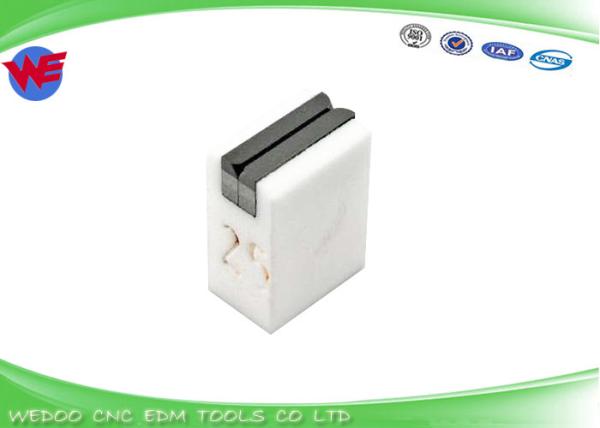

3EC81A415 Makino EDM Parts Consumables Diamond wire guide
Upper and Lower Sapphire wire guide
Original code: 3EC81A415 . 3EC81A414 , 3EC81A416
For model: Makino
Details:
| Item No. | OEM Code | Size (mm) | Application (details) |
| N | 3EC81A415 3EC81A414 3EC81A416 | 0.15mm 0.20mm 0.25mm 0.30mm | Makino |
For use on:
Makino DUO43, Makino DUO64, Makino SP43, Makino SP64, Makino U1310,
Makino U3,
Makino U3 H.E.A.T, Makino U32, Makino U32i, Makino U32j, Makino
U32K, Makino U53,
Makino U53i, Makino U53j, Makino U53K, Makino U53Tj, Makino U6,
Makino U6 H.E.A.T,
Makino U86, Makino UP32j, Makino UP53j, Makino UPV-3, Makino UPV-5,
Makino W32FB,
Makino W53FB
Feature of Makino EDM Wire Guides
1. Using high quality raw materials of diamond
2. Produce by exprienced technician and engineers with
Sophisticated machine equipment
3.High precision wire guide, Roundness and radius is tested by video measuring machine, tolerance
-0, +0.02mm
4. Long lifetime , able to use 4 to 7 months
5. Easy to assembly ,and high precision on cutting
6. Competitive price , and large quantity wire guide in stock
Our main products :
* EDM Spare parts : Wire Guide ,nozzles, roller ,power feed contact
,belt ,guide base , discharge cable…
* EDM Consumables: Brass wire , moly wire , JR3A ,Ion exchange
resin ,kc-12
* EDM Water Filters
* EDM Drilling Parts : ceramic pipe guide ,ruby pipe guide , rubber
seal , drill chuck
* EDM Copper / Brass tube : sighle hole ,double hole , multi hole
electrode tube
* EDM Copper tappers
* High speed wire cutting EDM Parts :guide pully , pully assembly ,
bearing ....
* Jig tools , jig holders
