F213 EDM Water Nozzle For Fanuc Wire Cutting EDM Machines
FANUC-WEDOO
_compress.pdf

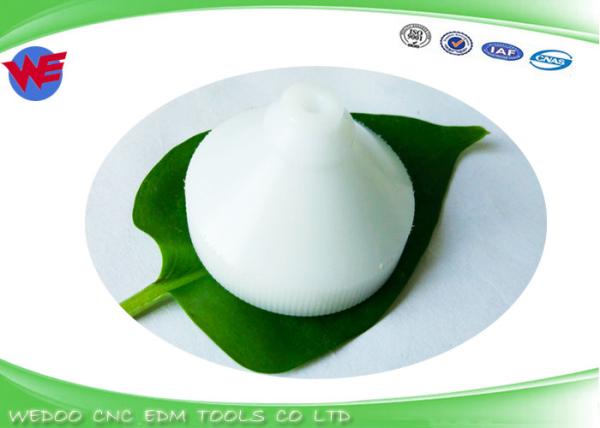

Lower Water Nozzle
Size : OD40*25H
Dia ( hole ID): Φ2 Φ4 Φ6.5 Φ10mm
Original code:
A290-8104-X774
A290-8102-X774
A290-8102-X771
A290-8102-X772
For Fanuc a-A,B,C,iA,iB series (AWF)
Feature of Fanuc EDM Water Nozzles
1. Using high quality raw materials of plastic
2. Produce by exprienced technician and engineers with
Sophisticated machine equipment
3. High precision water nozzle, tolerance -0.02mm
4. Competitive price , and large quantity nozzles in stock
5. Many types water nozzle is available
6. Long lifetime water nozzles , and good at running water
7. If you provide us drawing and samples , customized water nozzle
is possible
Details:
| Item No. | OEM Code | Size (mm) | Application (details) |
| F213 | A290-8104-X774
A290-8102-X774
A290-8102-X771
A290-8102-X772 | Φ2
Φ4=F215
Φ6.5
Φ12=F217 | Lower
a-A,B,C,iA,iB series (AWF)
OD40*25H |
| F213-1 | A290-8119-Z786
A290-8119-Z787
A290-8119-Z788 | Φ2
Φ4
Φ6.5
Φ12 | Lower Water Nozzle
a-A,B,C,iA,iB series (AWF)
OD45*24H |
Photo show:
The most hot products of us.
EDM Spare Parts: EDM Diamond Guide ,Water Nozzle ,Power Feed
Contact,Ceramic rollers
EDM Consumables: EDM Water Filter , Moly Wire, Resin, Brass Wire
Drilling Machines Parts: EDM Drill Guides, EDM Copper / Brass Tube
Pulley, Pulley assambly ,Bearing for High speed wire cut EDM
Machines.
