F101 EDM Diamond Wire Guide For Fanuc EDM Wire Cutting Machines
F101 wire guide Applicable to: EDM Fanuc Machines (Made in China)
FANUC-WEDOO
_compress.pdf
Upper EDM Wire Guide
Size : 0.105mm 0.155mm 0.205mm 0.255mm 0.305mm
Spec: Φ22*Φ6*Φ5*28mmL
Original code: A290-8021-X765 A290-8021-X766 A290-8021-X767
For Fanuc O,P,Q,T,W series(Manual)
F101 Fanuc Upper wire guide A290-8021-X762 ID = 0.05MM
F101 Fanuc Upper wire guide A290-8021-X763 ID = 0.10MM
F101 Fanuc Upper wire guide A290-8021-X764 ID = 0.15MM
F101 Fanuc Upper wire guide A290-8021-X765 ID = 0.20MM
F101 Fanuc Upper wire guide A290-8021-X766 ID = 0.25MM
F101 Fanuc Upper wire guide A290-8021-X767 ID = 0.30MM
F102 Lower wire guide A290-8021-X772 ID = 0.05MM
F102 Lower wire guide A290-8021-X773 ID = 0.10MM
F102 Lower wire guide A290-8021-X774 ID = 0.15MM
F102 Lower wire guide A290-8021-X775 ID = 0.20MM
F102 Lower wire guide A290-8021-X776 ID = 0.25MM
F102 Lower wire guide A290-8021-X777 ID = 0.30MM
Details:
| Item No. | OEM Code | Size (mm) | Application (details) |
| F101 | A290-8021-X765
A290-8021-X766
A290-8021-X767 | 0.105
0.155
0.205
0.255
0.305 | Upper wire guide
O,P,Q,T,W series(Manual)
Φ22*Φ6*Φ5*28mmL |
| F102 | A290-8021-X775
A290-8021-X776
A290-8021-X777 | 0.105
0.155
0.205
0.255
0.305 | Lower wire guide
O,P,Q,T,W series(Manual)
Φ22*Φ6*Φ5*28mmL |

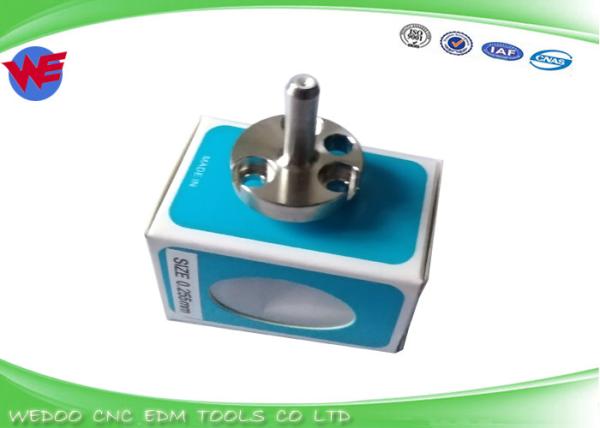

Photo show:
Feature of Fanuc EDM Wire Guides
1. Using high quality raw materials of diamond (1mm thickness
instead of 0.8mm thickness), ceramic , stainless steel
2. Produce by exprienced technician and engineers with
Sophisticated machine equipment
3. High precision wire guide, Roundness and radius is tested by video measuring machine, tolerance
-0, +0.02mm
3. Competitive price , and large quantity wire guide in stock
4. Many size of EDM Wire Guides are available
5. Long lifetime , easy to assembly ,and high precision on cutting
6. 3 months Guarantee,lifetime about 4 to 7 months
