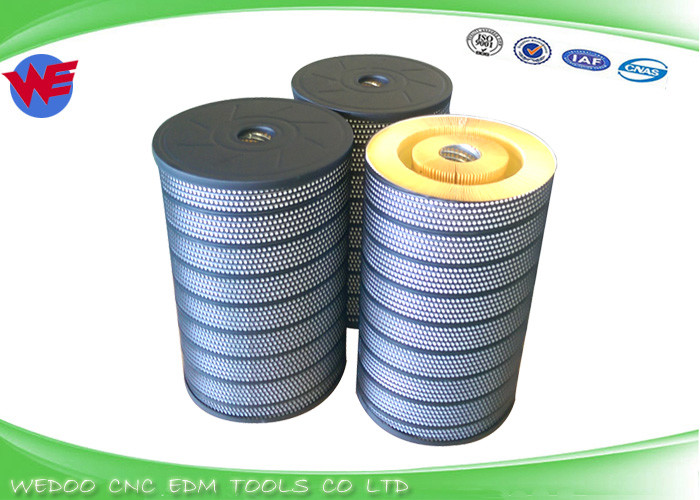

JW-40 EDM Water Filter With Nipple For Hitachi EDM Wire Cutting
Machines
1. Size: 300x59x500H
2. Type : Internal / External
3. Weight about 8KG
4. Fitting machines: Mitsubishi , Seibu, Makino, Hitachi , Chmer
5. EDM Filter with 20mm Connector / Connection / Nipple / Nozzle
6. Certification: ISO9001, SGS,
Details of JW-40 Water Filters
| Item No. | Size (mm) | Applicable models | Filtration
precision level | Filter
Area | Weight | Max
Pressure | Working
Time |
| JW-40 | 300x59x500H | Mitsubishi, Seibu,
Makino, Hitachi,
Chmer ,Accutex | 5u/8u | 12-14㎡ | 8kg | 198 kpa | 480H + |
Note : We can produce difference type filter for the same model and
the same specification.
1. Filter paper : Made in China ,German, Japan.
2. Single layer filter paper (Internal ); Double layer filter paper
(Internal / External )
The workshop and products.
Product Feature:
Filtering ratings: between 3-5 µ m. 5-8 µ m
Stable and durable quality of every filter is assured by
strictmanufacturing technics and quality check.
Longer life extension.
Excellent filtration of deionization.
Great filtration area and filtration efficiency with specialorigami
techniques and methods.
Most sizes and specifications are available to meet customers
different requirements for all types of machine tools
Quality description:
1. The filtration precision level comes with standard type thigh 5µ
m, special type with 3µ m and 10 µ m.
2. Working life of the filter ,beside the use of single filtration
system,there will be a large difference when cutting special
materials, e.g. tungsten stell, Alloy, metallurgy steel,copper and
aluminum and so on. In
the case of long usage time ,it will also affect the life of filter
.Cleaning of machine, Rouughing cut and
finishing cut will have a large difference in the life span during
comparison.
3. Phonemenon of the water when newly installed (possible within 1
to 2 days ): slight turbidity of water quality and or little
bubbles could be seen,this ondition will be stabilize after 2 days
and this phenomenon
is consideer normal which will not affect the result.
4. Our filter whigh acceptaple condition can be washed and dry for
further re-use .
5. Once the stipulated litered substance exceed the weight of our
specifiation,the filter has completed its
life cycle and this is in accordance to the design requirement.
6. There will be a difference in life span for the filter in the
event of fully submerge machine versus partially submerge type.
Our main products :
* EDM Spare parts : Wire Guide ,nozzles, roller ,power feed contact
,belt ,guide base , discharge cable…
* EDM Consumables: Brass wire , moly wire , JR3A ,Ion exchange
resin ,kc-12
* EDM Water Filters
* EDM Drilling Parts : ceramic pipe guide ,ruby pipe guide , rubber
seal , drill chuck
* EDM Copper / Brass tube : sighle hole ,double hole , multi hole
electrode tube
* EDM Copper tappers
* High speed wire cutting EDM Parts :guide pully , pully assembly ,
bearing ....
* Jig tools , jig holders
We are your reliable supplier ,Just contact with us now!
