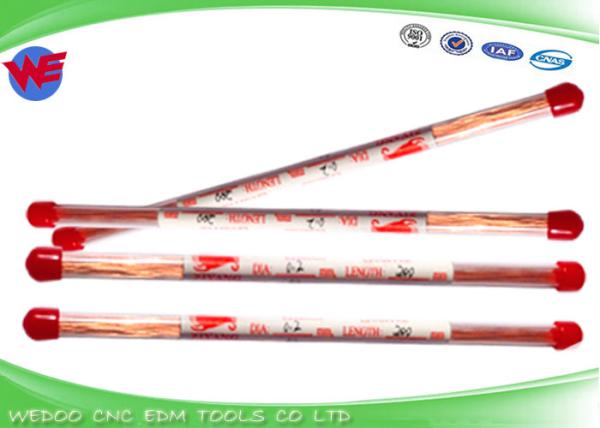

EDM Electrode Copper Tube 0.2x200mm For EDM Drilling Machine
Size: 0.2x200mmL
Material : Copper ( Brass is also available)
Packing 50 or 100 pcs in a tube
| Electrode Pipe | OD | Length | Material | Brand |
| Single hole | 0.2mm | 200mm 150mm | Copper | Ziyang, 5UM, Takibishi ,others |
Rages of EDM Electrodes.
1. Single hole EDM Brass / copper tube (0.1 to 6.0mm)
2. Multi-hole EDM Brass / copper tube (1.1 to 6.0mm)
3. Double hole EDM Brass / copper tube (0.5 to 1.0mm)
EDM Copper electrode tubes is used for process Tungsten steel and copper material.
Most common size EDM Electrode Brass / Copper Tube ,we have enough
quantity in stock ,for special size ( out diameter , length ) as
customized items take a little time to produce.
EDM Electrode Tube is applicable to high-speed electric-spark
small-hole processing machines, especially for deep and small
holes, and high-speed electric-spark processing.

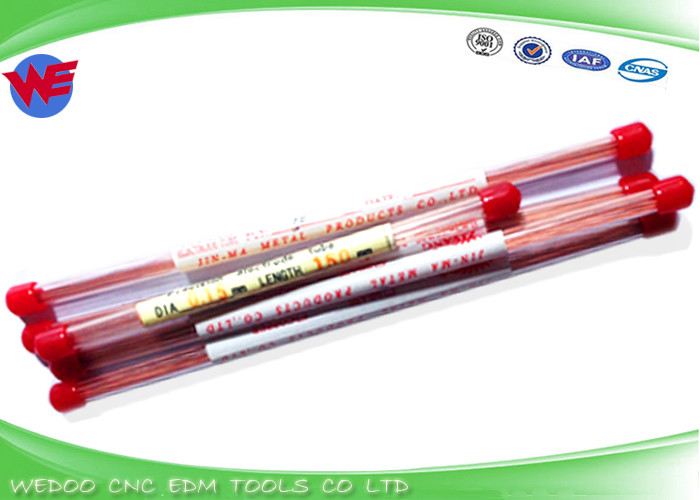

Products show:
Single hole / Double hole / Multi hole EDM Electrode Copper / Brass
Tubes
OD
(mm) | Single
Hole | Double
Hole | Mult
Hole | OD
(mm) | Single
Hole | Double
Hole | Multi
Hole |
| 0.1 | v | x | x | 2.6 | v | x | v |
| 0.15 | v | x | x | 2.7 | v | x | v |
| 0.17 | v | x | x | 2.8 | v | x | v |
| 0.2 | v | x | x | 2.9 | v | x | v |
| 0.25 | v | x | x | 3 | v | x | v |
| 0.3 | v | x | x | 3.1 | v | x | v |
| 0.35 | v | x | x | 3.2 | v | x | v |
| 0.4 | v | x | x | 3.3 | v | x | v |
| 0.45 | v | x | x | 3.4 | v | x | v |
| 0.5 | v | v | x | 3.5 | v | x | v |
| 0.55 | v | v | x | 3.6 | v | x | v |
| 0.6 | v | v | x | 3.7 | v | x | v |
| 0.65 | v | v | x | 3.8 | v | x | v |
| 0.7 | v | v | x | 3.9 | v | x | v |
| 0.75 | v | v | x | 4 | v | x | v |
| 0.8 | v | v | x | 4.1 | v | x | v |
| 0.85 | v | v | x | 4.2 | v | x | v |
| 0.9 | v | v | x | 4.3 | v | x | v |
| 0.95 | v | v | x | 4.4 | v | x | v |
| 1 | v | v | v | 4.5 | v | x | v |
| 1.1 | v | x | v | 4.6 | v | x | v |
| 1.2 | v | x | v | 4.7 | v | x | v |
| 1.3 | v | x | v | 4.8 | v | x | v |
| 1.4 | v | x | v | 4.9 | v | x | v |
| 1.5 | v | x | v | 5 | v | x | v |
| 1.6 | v | x | v | 5.1 | v | x | v |
| 1.7 | v | x | v | 5.2 | v | x | v |
| 1.8 | v | x | v | 5.3 | v | x | v |
| 1.9 | v | x | v | 5.4 | v | x | v |
| 2 | v | x | v | 5.5 | v | x | v |
| 2.1 | v | x | v | 5.6 | v | x | v |
| 2.2 | v | x | v | 5.7 | v | x | v |
| 2.3 | v | x | v | 5.8 | v | x | v |
| 2.4 | v | x | v | 5.9 | v | x | v |
| 2.5 | v | x | v | 6 | v | x | v |
Note:"x" is means disable to supply
Our main products:
* EDM Spare parts : Wire Guide ,nozzles, roller ,power feed contact
,belt ,guide base , discharge cable...
* EDM Consumables: Brass wire , moly wire , JR3A ,Ion exchange
resin ,kc-12
* EDM Water Filters
* EDM Drilling Parts : ceramic pipe guide ,ruby pipe guide , rubber
seal , drill chuck
* EDM Copper / Brass tube : sighle hole ,double hole , multi hole
electrode tube
* EDM Copper tappers
* High speed wire cutting EDM Parts :guide pully , pully assembly ,
bearing ....
* Jig tools , jig holders
