JW-37 Wire EDM Filters Fanuc Water Filter Internal Type For EDM Machines Sodick

WEDOO CNC EDM TOOLS CO. LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap JW-37 Wire EDM Filters Fanuc Water Filter Internal Type For EDM Machines Sodick from wholesalers

    Buy cheap JW-37 Wire EDM Filters Fanuc Water Filter Internal Type For EDM Machines Sodick from wholesalers
    • Buy cheap JW-37 Wire EDM Filters Fanuc Water Filter Internal Type For EDM Machines Sodick from wholesalers
    • Buy cheap JW-37 Wire EDM Filters Fanuc Water Filter Internal Type For EDM Machines Sodick from wholesalers

    JW-37 Wire EDM Filters Fanuc Water Filter Internal Type For EDM Machines Sodick

    Ask Lasest Price
    Brand Name : WEDOO
    Model Number : JW-37
    Price : Negotiation
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 100000 pcs per month
    Delivery Time : 5-10 workdays
    • Product Details
    • Company Profile

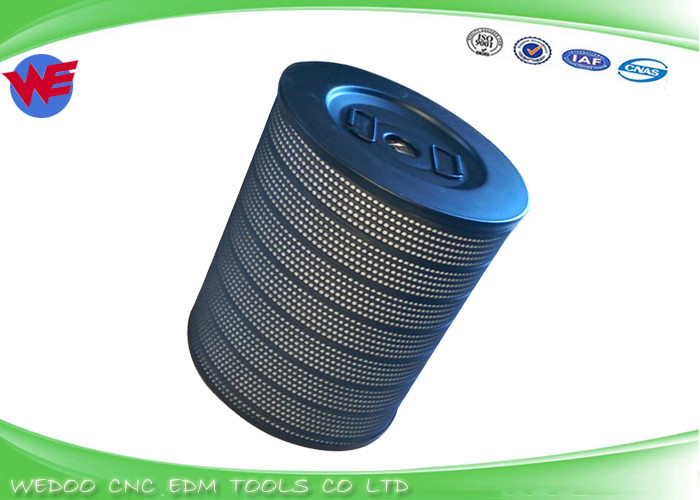

    JW-37 Wire EDM Filters Fanuc Water Filter Internal Type For EDM Machines Sodick

    JW-37 135000253 EDM Water Filter For Sodick And Fanuc EDM Wire Cutting Machines


    1. Size: 340x46x450H

    2. Type : Internal / External

    3. Weight about 6.5KG

    4. Fitting machines: Sodick , Fanuc, Charmilles, Japax

    5. Certification: ISO9001, SGS,

    6. 135000253 135.000.253


    Details of JW-40 Water Filters


    Item No.Size (mm)Applicable modelsFiltration
    precision level
    Filter
    Area
    WeightMax
    Pressure
    Working
    Time
    JW-37340x46x450H

    Fancu ,Sodick

    Charmilles, Japax

    5u/8u10-11㎡6.5kg198 kpa350 H +

    Note : We can produce difference type filter for the same model and the same specification.

    1. Filter paper : Made in China ,German, Japan.

    2. Single layer filter paper (Internal ); Double layer filter paper (Internal / External )


    The workshop and products.


    JW-37 Wire EDM Filters Fanuc Water Filter Internal Type For EDM Machines Sodick

    JW-37 Wire EDM Filters Fanuc Water Filter Internal Type For EDM Machines Sodick


    Product Feature:


    Filtering ratings: between 3-5 µ m. 5-8 µ m


    Stable and durable quality of every filter is assured by strictmanufacturing technics and quality check.

    Longer life extension.

    Excellent filtration of deionization.

    Great filtration area and filtration efficiency with specialorigami techniques and methods.

    Most sizes and specifications are available to meet customers different requirements for all types of machine tools


    Quality description:


    1. The filtration precision level comes with standard type thigh 5µ m, special type with 3µ m and 10 µ m.


    2. Working life of the filter ,beside the use of single filtration system,there will be a large difference when cutting special materials, e.g. tungsten stell, Alloy, metallurgy steel,copper and aluminum and so on. In

    the case of long usage time ,it will also affect the life of filter .Cleaning of machine, Rouughing cut and

    finishing cut will have a large difference in the life span during comparison.


    3. Phonemenon of the water when newly installed (possible within 1 to 2 days ): slight turbidity of water quality and or little bubbles could be seen,this ondition will be stabilize after 2 days and this phenomenon

    is consideer normal which will not affect the result.


    4. Our filter whigh acceptaple condition can be washed and dry for further re-use .


    5. Once the stipulated litered substance exceed the weight of our specifiation,the filter has completed its

    life cycle and this is in accordance to the design requirement.


    6. There will be a difference in life span for the filter in the event of fully submerge machine versus partially submerge type.


    How to order products from us ?


    1. First send inquiry about which products you want .


    2. Then confirm price, delivery times ,and payment terms ,MOQ

    .
    3. If you are satisfy our prices and service, send your PO to us . For first time , trial order or samples order is available to test the quality in advance.


    4. We will send you Proforma Invoice or Commercial Invoice to confirm again.


    5. Payment , you can make it by TT, Paypal, Western Union ,Cash.


    6. Delivery , we will arrange the shipment by Express or by air ,by sea. Which ways base on the

    quantity of your ordered.


    7. Feedback ,once you received the packing, welcome to feedback your idea to us, about packing, quality or anything more you want to inform us .


    8. After-sales service.


    We are your reliable supplier ,Just contact with us now!
