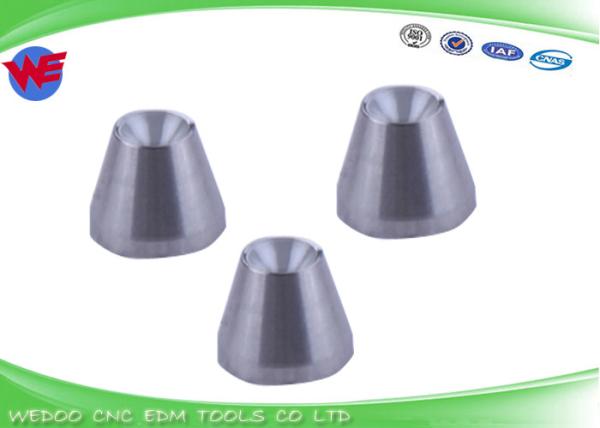

S102 EDM Wire Guide For Sodick EDM Wire Cut Machine
Upper and Lower EDM Diamond Wire Guide Search results for 'Sapphire guide'
SODICK-WEDOO _compress.pdf
Dia : 0.11 0.12 0.16 0.17 0.21 0.22 0.255 0.26 0.27 0.31 0.32mm
OEM Code : 3080237 3080238 3080240 3080241 3080244 3080245 3080247
3080248 3080249 3080250 3080251
Apply:Sodick 150W, Sodick 330W, Sodick 453W, Sodick 654W, Sodick AP150,
Sodick AW330, Sodick AW453, Sodick BF250, Sodick BF275, Sodick
EPOC300, Sodick EPOC3W, Sodick EPOC3WS, Sodick EPOC500, Sodick
EPOC5W, Sodick EPOC600, Sodick EPOC6W, Sodick EPOC800, Sodick
EPOC8W, Sodick G3A, Sodick G5A, Sodick GO3, Sodick GO5, Sodick
GOW3, Sodick GOW5, Sodick GW3, Sodick GW5
S102 Sodick Guide: 3080236,0200134 ID=0.105mm
S102 Sodick Guide: 3080237,3080210, 0205662, 0200105 ID=0.11mm
S102 Sodick Guide: 3080238,3080211,0205663, 0200106, J06545A ID=0.12mm
S102 Sodick Guide: 3080512,0200129 ID=0.155mm
S102 Sodick Guide: 3080240,3080213, 0205668, 0200107 ID=0.16mm
S102 Sodick Guide: 3080241,3080214, 0205669, 0200108, J06547A ID=0.17mm
S102 Sodick Guide: 3080243,0200139 ID=0.205mm
S102 Sodick Guide: 3080244,3080219, 0205671, 0200110 ID=0.21mm
S102 Sodick Guide: 3080245,3080220, 0204689, 0200111, J06549A, 118161 ID=0.22mm
S102 Sodick Guide: 3080247,0200142, ID=0.255mm
S102 Sodick Guide: 3080248,3080223, 0205407, 0200112 ID=0.26mm
S102 Sodick Guide: 3080249,3080224, 0204690, 0200113, J06551A, 118162 ID=0.27mm
S102 Sodick Guide: 3087704,0204302, ID=0.305mm
S102 Sodick Guide: 3080225, 3080250,0205409, 0200114 ID=0.31mm
S102 Sodick Guide: 3080226, 3080251,0205410, 0200115, J06553A ID=0.32mm
Advantages Of EDM Diamond Wire Guide From WEDOO CNC EDM TOOLS
Definition: Diamond Wire Gudie is EDM Wire cutting machine tool accessories,
belongs to small parts, but it bears the mission of high precision.
A high quality diamond Wire Guide have to bear high temperature and
high pressure, high precision, not easy to abrasion -----this four
standards.
Application range: Diamond Wire Guide mainly applies to Zinc Coated Wire, Molybdenum
Wire and EDM Brass Wire.
Material: Choose industry synthetic diamond stone as the most importance
material, high hardness, high precision, good abrasion resistance
and surface smoothness . Using zirconia type ceramic ,the hardness
is better than aluminium oxide type ceramic .High quality stainless
steel as housing of EDM Diamond Guide.
Lifetime: Normal processing works 24 hours a day. The Wire Guide provided by
WEDOO can achieve > 4500 Hours
Size: From 0.1mm to 0.31mm
There are many type difference Diamond Wire Guide for difference
EDM Wire cut machine, such as Sodick, Makino,
Fanuc,Charmilles,Mitsubishi,Chmer a variety of brands, although the
shape of Wire Guide is different, but its effect is the same: to
wear Brass wire
How to order products from us ?
1. First send inquiry about which products you want .
2. Then confirm price, delivery times ,and payment terms ,MOQ.
3. If you are satisfy our prices and service, send your PO to us .
For first time , trial order or samples order is available to test
the quality in advance.
4. We will send you Proforma Invoice or Commercial Invoice to
confirm again.
5. Payment , you can make it by TT, Paypal, Western Union ,Cash.
6. Delivery , we will arrange the shipment by Express or by air ,by
sea. Which ways
base on the quantity of your ordered.
7. Feedback ,once you received the packing, welcome to feedback
your idea to us, about packing, quality or anything more you want
to inform us .
8. After-sales service.
