S101 Sodick Sapphire split guide EDM Consumables Parts Fine EDM Sapphire Wire Guide
SODICK-WEDOO _compress.pdf
Upper and Lower EDM Sapphire Wire Guide Fine Type
Dia : 0.105MM,0.11MM,0.12MM,0.155MM,0.16MM,0.17MM,0.205MM,0.21MM,0.22MM,0.255MM,0.26MM,0.27MM,0.305MM,0.31MM,0.32MM
Apply: Sodick A1000W, Sodick A300W, Sodick A320D, Sodick A325, Sodick
A350, Sodick A350S, Sodick A350SSW, Sodick A350W, Sodick A500,
Sodick A500W, Sodick A530D, Sodick A600, Sodick A600W, Sodick A750,
Sodick A750H, Sodick A750W, Sodick A750WH, Sodick AP200, Sodick
AP200L, Sodick AP330, Sodick AP450, Sodick AP450L, Sodick AP550,
Sodick AQ325L, Sodick AQ327L, Sodick AQ535L, Sodick AQ537L, Sodick
AQ550L, Sodick AQ600, Sodick AQ750L, Sodick AQ900L, Sodick AW330,
Sodick AW453, Sodick BF275, Sodick BF280L, Sodick EPOC1100, Sodick
EPOC300, Sodick EPOC500, Sodick EPOC600, Sodick EPOC800, Sodick
EXC100, Sodick EXC100S, Sodick JL35, Sodick JL55, Sodick JL65,
Sodick JL85, Sodick PGW200, Sodick PGW3
Sapphire split guide Sodick A+B Wire Guide 3082283, 0205098 = 0.105MM
Sapphire split guide Sodick A+B Wire Guide 3080046, 0204679, 0200273 = 0.110MM
Sapphire split guide Sodick A+B Wire Guide 3080051, 0205099, 0200274 = 0.120MM
Sapphire split guide Sodick A+B Wire Guide 3083863, 0205101 = 0.155MM
Sapphire split guide Sodick A+B Wire Guide 3080053, 0205102, 0200277 = 0.160MM
Sapphire split guide Sodick A+B Wire Guide 3080055, 0205363, 0200278 = 0.170MM
Sapphire split guide Sodick A+B Wire Guide 3081482, 0205103 = 0.205MM
Sapphire split guide Sodick A+B Wire Guide 3080047, 0204680, 0200280 = 0.210MM
Sapphire split guide Sodick A+B Wire Guide 3080058, 0205048, 0200281 = 0.220MM
Sapphire split guide Sodick A+B Wire Guide 3081771, 0205267 = 0.255MM
Sapphire split guide Sodick A+B Wire Guide 3080629, 0204681, 0200283 = 0.260MM
Sapphire split guide Sodick A+B Wire Guide 3080061, 0205049, 0200284 = 0.270MM
Sapphire split guide Sodick A+B Wire Guide 3086400, 0205506 = 0.305MM
Sapphire split guide Sodick A+B Wire Guide 3081934, 0204701, 0200285 = 0.310MM
Sapphire split guide Sodick A+B Wire Guide 3080063, 0205050, 0200286 = 0.320MM
Details:
| Item No. | OEM Code | Size (mm) | Application (details) |
| S101 | 3080046
3080051 | 0.05
0.07
0.11
0.12 | Upper / Lower Fine wire guide
AQ,A,EPOC series,AP200-AP550,PGW220,EXC100,BF,JL series |

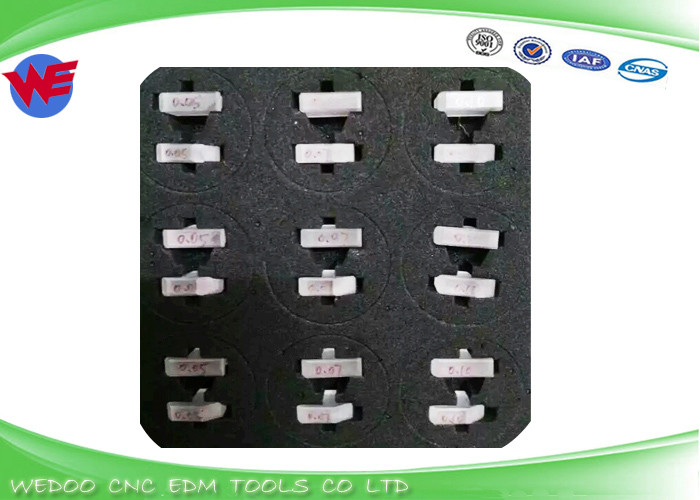

Photo show:
Advantages Of EDM Diamond Wire Guide From WEDOO CNC EDM TOOLS
Definition: Diamond Wire Gudie is EDM Wire cutting machine tool accessories,
belongs to small parts, but it bears the mission of high precision.
A high quality diamond Wire Guide have to bear high temperature and
high pressure, high precision, not easy to abrasion -----this four
standards.
Application range: Diamond Wire Guide mainly applies to Zinc Coated Wire, Molybdenum
Wire and EDM Brass Wire.
Material: Choose industry synthetic diamond stone as the most importance
material, high hardness, high precision, good abrasion resistance
and surface smoothness . Using zirconia type ceramic ,the hardness
is better than aluminium oxide type ceramic .High quality stainless
steel as housing of EDM Diamond Guide.
Lifetime: Normal processing works 24 hours a day. The Wire Guide provided by
WEDOO can achieve > 4500 Hours
Size: From 0.105mm to 0.32mm
There are many type difference Diamond Wire Guide for difference
EDM Wire cut machine, such as Sodick, Makino,
Fanuc,Charmilles,Mitsubishi,Chmer a variety of brands, although the
shape of Wire Guide is different, but its effect is the same: to
wear Brass wire
Our main products :
* EDM Spare parts : Wire Guide ,nozzles, roller ,power feed contact
,belt ,guide base , discharge cable…
* EDM Consumables: Brass wire , moly wire , JR3A ,Ion exchange
resin ,kc-12
* EDM Water Filters
* EDM Drilling Parts : ceramic pipe guide ,ruby pipe guide , rubber
seal , drill chuck
* EDM Copper / Brass tube : sighle hole ,double hole , multi hole
electrode tube
* EDM Copper tappers
* High speed wire cutting EDM Parts :guide pully , pully assembly ,
bearing ....
* Jig tools , jig holders
