M115 M116 MV MP Upper EDM Wire Guide Mitsubishi EDM Consumables
Parts
MITSUBISHI
_compress.pdf

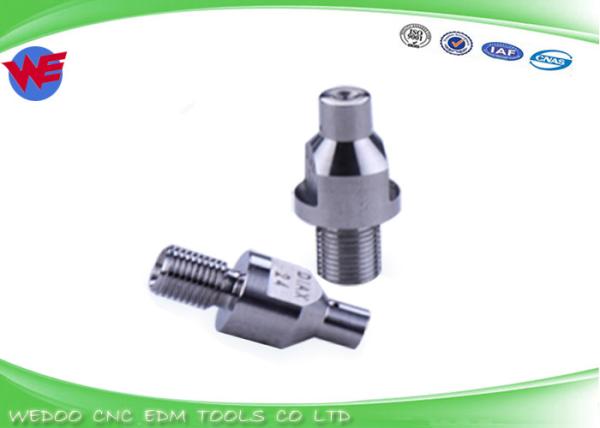

Upper Diamond Wire Guide
MV Wire Guide For Mitsubishi machine use (Made in China)
Dia : 0.105mm; 0.155mm;0.205mm, 0.21mm; 0.22mm; 0.255mm; 0.26mm; 0.305mm;
0.31mm;
Original Code : X052B627G63 X052B627G62 X052B627G66 X052B627G65 X052B627G64
Machine Model: DWC-MV1200/MV1400;MD series
M115 Upper Diamond Wire Guide MV Serie : X052B627G66 (DEG2400) (DFW3500) (DEG24A) D=0.105mm
M115 Upper Diamond Wire Guide MV Serie : X052B627G65 (DEG2500) (DFW3600) (DEG25A) D=0.155mm
M115 Upper Diamond Wire Guide MV Serie : X052B627G64 (DEG2600) (DFW3700) (DEG26A) (DEG30A) D=0.205mm
M115 Upper Diamond Wire Guide MV Serie : X052B627G63 (DEG2700) (DFW3800) (DEG27A) (DEG31A) (252215) D=0.255mm
M115 Upper Diamond Wire Guide MV Serie : X052B627G62 (DEG2800) (DFW3900) (DEG28A) D=0.305mm
M116 Upper Diamond Wire Guide MV Serie : X052B609G66 (DEG3200) (DFW4000) (DEG32A) D=0.105mm
M116 Upper Diamond Wire Guide MV Serie : X052B609G65 (DEG3300) (DFW4100) (DEG33A) D=0.155mm
M116 Upper Diamond Wire Guide MV Serie : X052B609G64 (DEG3400) (DFW4200) (DEG34A) (DEG37A) D=0.205mm
M116 Upper Diamond Wire Guide MV Serie : X052B609G63 (DEG3500) (DFW4300) (DEG35A) (DEG38A) D=0.255mm
M116 Upper Diamond Wire Guide MV Serie : X052B609G62 (DEG3600) (DFW4400) (DEG36A) D=0.305mm
Details:
| Item No. | OEM Code | Size (mm) | Application (details) |
| M115 | X052B627G66 X052B627G65 X052B627G64 X052B627G63 X052B627G63 X052B627G62 | 0.105mm 0.155mm 0.205mm 0.255mm 0.305mm | Upper Wire Guide
DWC-MV1200/MV2400;MD series DWC-MP1200/MP2400/MP4800 |
| M116 | X052B609G66 X052B609G65 X052B609G64 X052B609G63 X052B609G62 | 0.105mm 0.155mm 0.205mm 0.255mm 0.305mm | Lower Wire Guide
DWC-MV1200/MV2400;MD series DWC-MP1200/MP2400/MP4800 |
Products show
Advantages Of EDM Diamond Wire Guide From WEDOO CNC EDM TOOLS
Definition: Diamond Wire Gudie is EDM Wire cutting machine tool accessories,
belongs to small parts, but it bears the mission of high precision.
A high quality diamond Wire Guide have to bear high temperature and
high pressure, high precision, not easy to abrasion -----this four
standards.
Application range: Diamond Wire Guide mainly applies to Zinc Coated Wire, Molybdenum
Wire and EDM Brass Wire.
Material: Choose industry synthetic diamond stone as the most importance
material, high hardness, high precision, good abrasion resistance
and surface smoothness . Using zirconia type ceramic ,the hardness
is better than aluminium oxide type ceramic .High quality stainless
steel as housing of EDM Diamond Guide.
Lifetime: Normal processing works 24 hours a day. The Wire Guide provided by
WEDOO can achieve > 4500 Hours
Size: From 0.1mm to 0.31mm
There are many type difference Diamond Wire Guide for difference
EDM Wire cut machine, such as Sodick, Makino,
Fanuc,Charmilles,Mitsubishi,Chmer a variety of brands, although the
shape of Wire Guide is different, but its effect is the same: to
wear Brass wire
Main Market of us :
Asia , Europe , America , Africa
