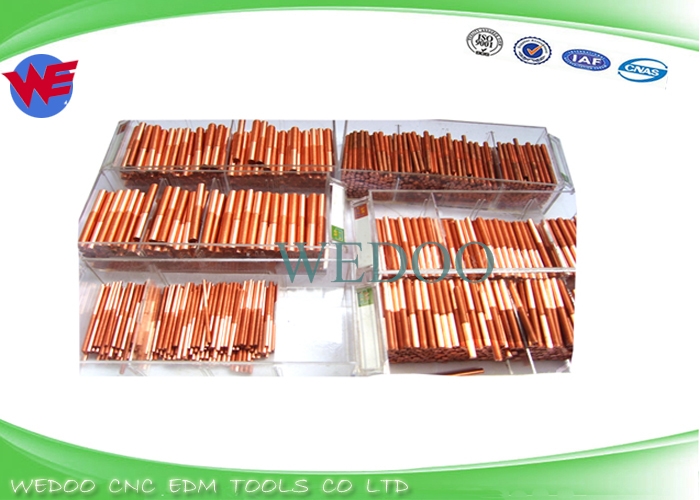

Copper Electrode Thread Tapppers Without Hole M4x0.7 For EDM
Machine
Total length: 80mm ;Tap length:50mm
Difference length Tapping Electrodes is available, nomarl length is
80x50mm, 70x55mm ,
75x50mm,55x35mm.
Threading electrode range : M2 ; M2.5; M3; M4; M5; M6; M8; M10;
M12; M14; M16; M18; M20; M22
International standard spec. Fine processing , high quality Tapping
Electrode , be well received by oversea customers .
EDM Copper Electrode Tapping for EDM Spark Machkine and EDM
Drilling Machine is available !
Large quantity in stock ,fast delivery !
| Copper Tapping Electrodes | (Cu) | Tungsten CopperTapping Electrodes (CuW) |
| Tapping | Total
L(mm) | Tap L
(mm) | Thin pitch | Under quta D | Tapping | Total
L(mm) | Tap L
(mm) | Thin pitch | Under quta D |
| M2x0.4 | 50 | 20 | | | M2x0.4 | 50 | 20 | | |
| M2.5x0.45 | 50 | 20 | | | M2.5x0.45 | 50 | 20 | | |
| M3x0.5 | 80 | 50 | | 2.3 | M3x0.5 | 68 | 48 | | 2.3 |
| M4x0.7 | 80 | 50 | | 2.9 | M4x0.7 | 68 | 48 | | 2.9 |
| M5x0.8 | 80 | 50 | 0.5 | 3.8 | M5x0.8 | 68 | 48 | 0.5 | 3.8 |
| M6x1.0 | 80 | 50 | 0.75 | 4.5 | M6x1.0 | 68 | 48 | 0.75 | 4.5 |
| M8x1.25 | 80 | 50 | 0.75-1 | 6 | M8x1.25 | 68 | 48 | 0.75-1 | 6 |
| M10x1.5 | 80 | 50 | 1 | 7.8 | M10x1.5 | 68 | 48 | 1 | 7.8 |
| M12x1.75 | 80 | 50 | 1-1.25-1.5 | 9.4 | M12x1.75 | 68 | 48 | 1-1.25-1.5 | 9.4 |
| M14x2 | 80 | 50 | 1-1.25-1.5 | 11.1 | M14x2 | 68 | 48 | 1-1.25-1.5 | 11.1 |
| M16x2 | 80 | 50 | 1.5 | 13.1 | M16x2 | 68 | 48 | 1.5 | 13.1 |
| M18x2.5 | 80 | 50 | | 14.4 | M18x2.5 | 68 | 48 | | 14.4 |
Tapping Electrodes M2-M20
* Copper tapper without hole
* Copper Tapper with hole
* Tungsten Copper Tapper without hole
* Tungsten Copper Tapper with hole
For special size ,customized items is available to made!
Materials details
CuW50 and CuW55 have the lowest Tungsten contents. They are both good switching
and contact materials for oil filled devices. CuW55 is also used
for arcing contacts in oil circuit breakers and arcing edges of
selectors and switchblades in transformer tap changers.
CuW65 and CuW70 are used as contact materials in severe arcing applications
including gas, oil and some air circuit breakers. They are also
used for arcing edges on selectors and reversing switch blades.
CuW75 and CuW80 are used as contact materials under extreme arcing conditions.
Applications include arcing contacts in gas and oil circuit
breakers, contactors and transformer tap changers, arcing plates
and arc runners in power switching equipment.
CuW85 and CuW90 have the highest Tungsten content. They are used as contact
materials where resistance to contact welding, sticking and arc
erosion are critical. They also provide satisfactory heat and
current interruption capabilities. Typical applications are power
vacuum switches and high power spark gap electrodes, etc
If you need Tapping Electrode with Tungsten copper ( CuW ) ,or
Copper (Cu) , without hole / with hole , in order to choice
the right one products, Please keep in touch with us about your
detail demands.
